Chevrolet Corvette C8 wheels
The C8 is the first Corvette where the front and rear wheels live genuinely different lives — the engine moved behind the seats, and the wheels followed the weight. Factory fitment is staggered in diameter as well as width, 19s up front and 20s at the rear, and everything about upgrading them flows from that mid-engine split. Preview any set on your actual C8 first, free.
Popular wheel styles for the Chevrolet Corvette C8
Whether you lean OEM-plus or full stretch, tap a style below to preview it on your Corvette C8 in the visualizer.
Finishes to try
Wheels on the Chevrolet Corvette C8: what actually works
The C8 wheel scene starts with a detail that catches Corvette veterans: the pattern changed. The C8 runs 5x120, while every Corvette from C5 through C7 used the oddball 5x120.65 — close enough to look interchangeable, different enough that they are not, so a garage full of old Corvette wheels helps you not at all. At the top of the range sits one of the most exotic factory wheel options in any showroom: the Z06 can be ordered with carbon-fibre wheels, which strip a dramatic slice of unsprung and rotating mass from each corner at a price that reflects the material. The aftermarket beneath that is deep and mid-engine-aware — flow-formed and forged staggered sets built around the C8's 19-front, 20-rear geometry, with the visual weight biased rearward the way the car's proportions now demand.
Buying wheels for a Corvette C8: the traps and the smart path
Buying C8 wheels means respecting the stagger in both directions: diameter and width differ front to rear, so wheels are bought as engineered sets rather than four of a kind, and rotating tyres front-to-back is off the table — budget for rears wearing first, because the mid-mounted V8 sends everything through them. Check mass before style: the C8 is a genuine performance car and a heavy cast 21-inch set dulls exactly the responses you bought it for, while a quality flow-formed or forged set preserves them. And if you are shopping used, verify the pattern — 5x120, not the C5-C7's 5x120.65 — because the two look identical in a listing photo and only one bolts to your car.
Chevrolet Corvette C8 wheel fitment
The key numbers to get right before you buy a set of wheels for your Corvette C8:
Bolt pattern
5x120
Factory sizes
19" front / 20" rear
Popular plus-size
19"–21"
Heads up: The C8 switched to 5x120; C5–C7 used 5x120.65.
Values here are representative and depend on year, trim and brake package. Check your own fitment — door-jamb placard or a wheel shop — before purchasing.
Chevrolet Corvette C8 wheel FAQ
Do older Corvette wheels fit the C8?
No — and it is the classic C8 trap. The C8 uses a 5x120 bolt pattern while the C5, C6 and C7 all used 5x120.65. The two look interchangeable in photos and are close enough to start a lug nut, but they are not compatible. Any Corvette wheel made before 2020 should be assumed wrong for a C8 until proven otherwise.
Are the Z06's carbon fibre wheels worth it?
They are one of the most extreme factory wheel options sold on any car — carbon construction removes a dramatic amount of rotating and unsprung mass, which sharpens ride, steering and acceleration all at once. The trade is cost and kerb anxiety: carbon wheels are expensive to buy and unforgiving to kerb. For road cars, a quality forged aluminium set captures much of the benefit at a fraction of the exposure.
Can I run a square (non-staggered) setup on a C8?
The car was engineered around a staggered fitment — 19-inch front, 20-inch rear, with wider rear rubber to handle the mid-mounted V8's output — and the aftermarket follows that geometry. Deviating from the stagger changes the handling balance the factory tuned in. Most C8 builds keep the staggered layout and spend their budget on construction quality instead.
What is the bolt pattern on a Chevrolet Corvette C8?
The Chevrolet Corvette C8 uses a 5x120 bolt pattern. The C8 switched to 5x120; C5–C7 used 5x120.65. Always confirm your exact year and trim before buying wheels.
What size wheels fit a Chevrolet Corvette C8?
Chevrolet Corvette C8s typically run 19" front / 20" rear from the factory; a popular plus-size is 19"–21". Bigger rims need shorter sidewalls to hold the rev-per-mile near factory — see how it sits before committing.
Will bigger wheels change how my Chevrolet Corvette C8 rides?
Yes, a little - bigger diameter with a thinner tyre sharpens turn-in but transmits more road, and kerbs bite harder. A modest step keeps the daily ride livable.
How can I see wheels on my Chevrolet Corvette C8 before buying?

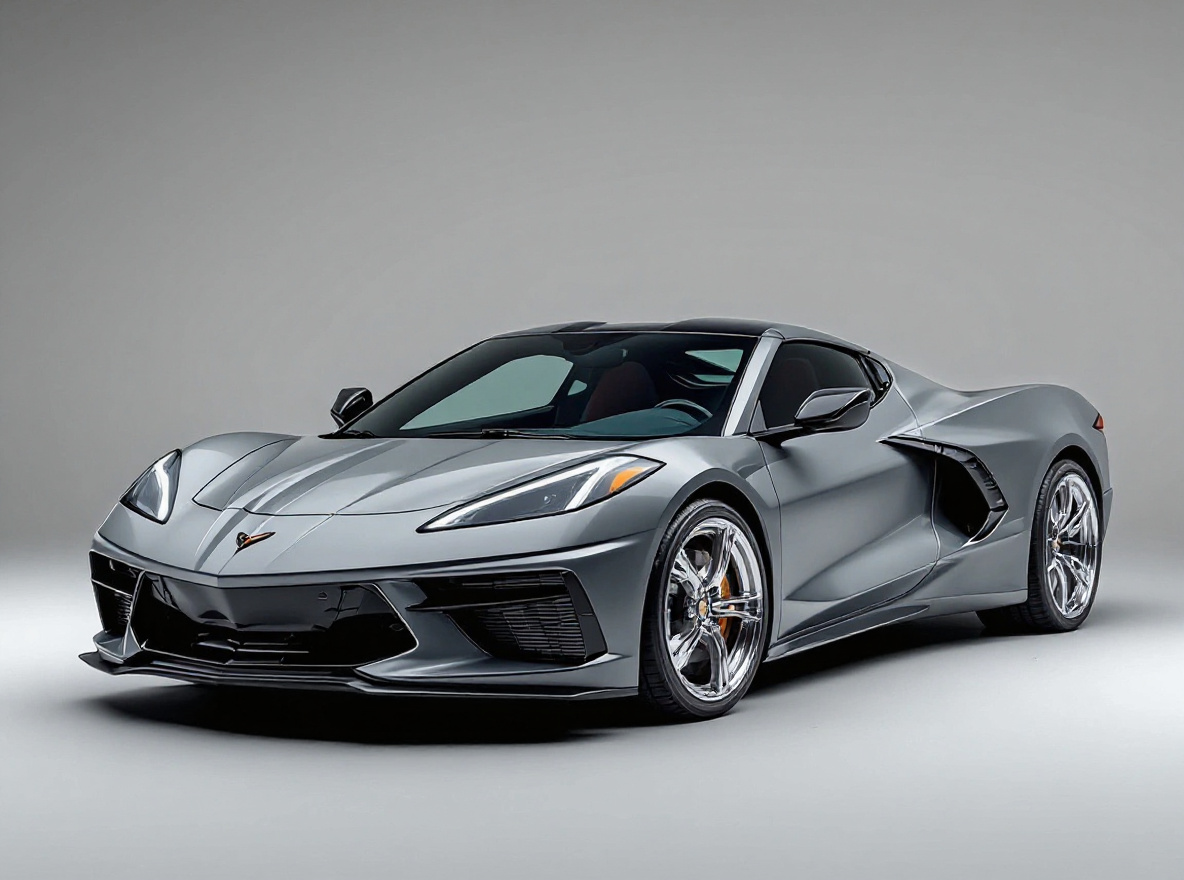

Upload a shot of your Corvette C8 to the free TunedRides wheel visualizer, or start from a sample, then pick a style, finish and size and watch the AI fit them to your car in seconds.
